| Name | Value |
|---|---|
| Bearing number | FYTB 1.1/2 WDW |
| Size (mm) | 38.1x38.5x14 |
| Brand | MBY |
| Bore Diameter (mm) | 38.1 |
| Outer Diameter (mm) | 38.5 |
| Width (mm) | 14 |

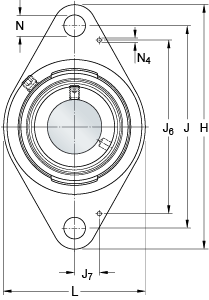

| Name | Value |
|---|---|
| d | 38.1 mm |
| A | 38.5 mm |
| A1 | 14 mm |
| A3 | H14 - 3.2 mm |
| A5 | 23.5 mm |
| B1 | 56.3 mm |
| B4 | 6.75 mm |
| Da | H11 - 88.9 mm |
| Db1 | 98 mm |
| Db2 | 102 mm |
| J | 143.5 mm |
| H | 171.5 mm |
| L | 102 mm |
| H | 14 mm |
| s1 | 34.9 mm |
| T | 58.9 mm |
| J6 | 115.5 mm |
| J7 | 16 mm |
| N4 | 2 mm |
| RG | 1/4-28 UNF |
| R1 | 24.5 mm |
| Rα | 45 ° |
| Basic dynamic load rating | C - 30.7 kN |
| Basic static load rating | C0 - 19 kN |
| Fatigue load limit | Pu - 0.8 kN |
| Limiting speed | 950 r/min |
| Mass bearing unit | 1.75 kg |
| Thread | G2 - 3/8-24 UNF |
| Hexagonal key size for grub screw | H - 4.762 mm |
| Recommended tightening torque for grub screw | 16.5 N·m |
