| Name | Value |
|---|---|
| Bearing number | NAO 12x24x13 |
| Size (mm) | 12x24x13 |
| Brand | MBY |
| Bore Diameter (mm) | 12 |
| Outer Diameter (mm) | 24 |
| Width (mm) | 13 |
| Name | Value |
|---|---|
| d | 12 mm |
| D | 24 mm |
| B | 13 mm |
| E | 20 mm |
| F | 16 mm |
| r1,2 | min. - 0.3 mm |
| s | 0.5 mm |

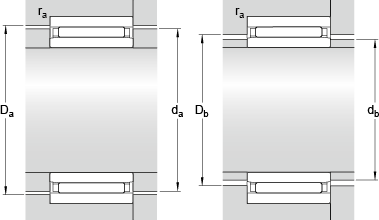

| da | 19.6 mm |
| db | 15.7 mm |
| Da | 20.3 mm |
| Db | 16.4 mm |
| ra | max. - 0.3 mm |
| Basic dynamic load rating | C - 8.6 kN |
| Basic static load rating | C0 - 12 kN |
| Fatigue load limit | Pu - 1.4 kN |
| Reference speed | 24000 r/min |
| Limiting speed | 26000 r/min |
| Mass bearing | 0.03 kg |
