| Name | Value |
|---|---|
| Bearing number | NN 3007 K/SP |
| Size (mm) | 35x62x20 |
| Brand | MBY |
| Bore Diameter (mm) | 35 |
| Outer Diameter (mm) | 62 |
| Width (mm) | 20 |

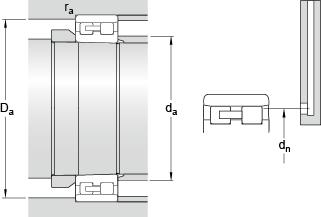

| Name | Value |
|---|---|
| d | 35 mm |
| D | 62 mm |
| B | 20 mm |
| d1 | 45.8 mm |
| E | 55 mm |
| r1,2 | min. - 1 mm |
| r3,4 | min. - 0.6 mm |
| s | 1.5 mm |
| da | min. - 40 mm |
| Da | min. - 56 mm |
| Da | max. - 57 mm |
| ra | max. - 1 mm |
| dn | 54 mm |
| Basic dynamic load rating | C - 39.1 kN |
| Basic static load rating | C0 - 50 kN |
| Fatigue load limit | Pu - 5.4 kN |
| Limiting speed for grease lubrication | 14000 r/min |
| Limiting speed for oil lubrication | 16000 mm/min |
| Gref | 1.9 cm |
| Static radial stiffness (guideline value) | 820 N/micron |
| Mass bearing | 0.25 kg |
