| Name | Value |
|---|---|
| Bearing number | SY 1. TDW |
| Size (mm) | 25.4x36x22 |
| Brand | MBY |
| Bore Diameter (mm) | 25.4 |
| Outer Diameter (mm) | 36 |
| Width (mm) | 22 |

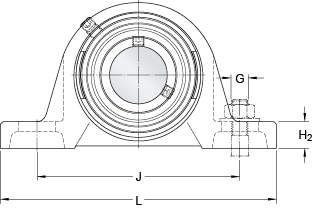

| Name | Value |
|---|---|
| d | 25.4 mm |
| A | 36 mm |
| A1 | 22 mm |
| A5 | 18 mm |
| B | 34.1 mm |
| H | 70 mm |
| H1 | 36.5 mm |
| H2 | 16 mm |
| J | 102 mm |
| J | max. - 110 mm |
| J | min. - 94 mm |
| L | 130 mm |
| H | 19.5 mm |
| N1 | 11.5 mm |
| s1 | 19.8 mm |
| J6 | 120 mm |
| J7 | 13 mm |
| N4 | 4 mm |
| Basic dynamic load rating | C - 14 kN |
| Basic static load rating | C0 - 7.8 kN |
| Fatigue load limit | Pu - 0.335 kN |
| Limiting speed | 1500 r/min |
| Weight | 0.71 kg |
| Hexagonal key size for grub screw | H - 3.175 mm |
| Recommended tightening torque for grub screw | 4 N·m |
