| Name | Value |
|---|---|
| Bearing number | SY 1.11/16 LDW |
| Size (mm) | 42.862x44.53x48 |
| Brand | MBY |
| Bore Diameter (mm) | 42.862 |
| Outer Diameter (mm) | 44.53 |
| Width (mm) | 48 |

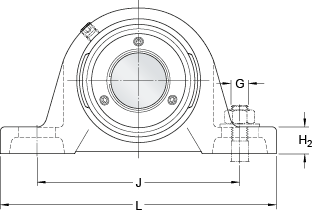

| Name | Value |
|---|---|
| d | 42.862 mm |
| d | 44.53 mm |
| A | 48 mm |
| A1 | 32 mm |
| A5 | 23 mm |
| B1 | 44 mm |
| H | 107 mm |
| H1 | 54 mm |
| H2 | 21 mm |
| J | 143.5 mm |
| J | max. - 152 mm |
| J | min. - 135 mm |
| L | 187 mm |
| H | 22.5 mm |
| N1 | 14 mm |
| s1 | 26.5 mm |
| J6 | 173 mm |
| J7 | 17 mm |
| N4 | 4 mm |
| Basic dynamic load rating | C - 33.2 kN |
| Basic static load rating | C0 - 21.6 kN |
| Fatigue load limit | Pu - 0.915 kN |
| Limiting speed | 850 r/min |
| Weight | 2.2 kg |
| Hexagonal key size for grub screw | H - 3 mm |
| Recommended tightening torque for grub screw | 7.4 N·m |
| SKF | 626830 |
