| Name | Value |
|---|---|
| Bearing number | SYH 1.3/16 WF |
| Size (mm) | 30.163x40x25 |
| Brand | MBY |
| Bore Diameter (mm) | 30.163 |
| Outer Diameter (mm) | 40 |
| Width (mm) | 25 |

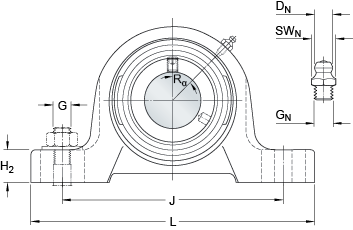

| Name | Value |
|---|---|
| d | 30.163 mm |
| A | 40 mm |
| A1 | 25 mm |
| B1 | 48.4 mm |
| H | 81.5 mm |
| H1 | 39.7 mm |
| H2 | 15 mm |
| J | 117.5 mm |
| J | max. - 127 mm |
| J | min. - 108 mm |
| L | 152 mm |
| H | 23.5 mm |
| N1 | 14 mm |
| s1 | 30.1 mm |
| J6 | 140 mm |
| J7 | 14 mm |
| N4 | 3 mm |
| DN | 6.579 mm |
| SWN | 11.112 mm |
| GN | 1/8-27 NPT |
| RG | 1/8-27 NPT |
| R1 | 1.5 mm |
| Rα | 45 ° |
| Basic dynamic load rating | C - 19.5 kN |
| Basic static load rating | C0 - 11.2 kN |
| Fatigue load limit | Pu - 0.475 kN |
| Limiting speed | 6300 r/min |
| Weight | 1.1 kg |
| Hexagonal key size for grub screw | H - 3.969 mm |
| Recommended tightening torque for grub screw | 6.5 N·m |
