| Name | Value |
|---|---|
| Bearing number | SYWK 1.15/16 LTA |
| Size (mm) | 49.213x60x37 |
| Brand | MBY |
| Bore Diameter (mm) | 49.213 |
| Outer Diameter (mm) | 60 |
| Width (mm) | 37 |

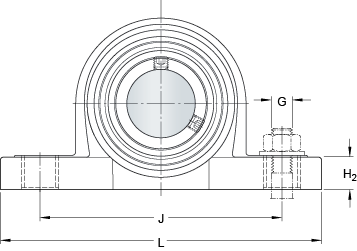

| Name | Value |
|---|---|
| d | 49.213 mm |
| A | 60 mm |
| A1 | 37 mm |
| A5 | 42.4 mm |
| B | 51.6 mm |
| H | 114 mm |
| H1 | 57.2 mm |
| H2 | 23 mm |
| J | 159 mm |
| J | max. - 162 mm |
| J | min. - 156 mm |
| L | 206 mm |
| H | 20 mm |
| N1 | 17 mm |
| s1 | 32.6 mm |
| Basic dynamic load rating | C - 35.1 kN |
| Basic static load rating | C0 - 23.2 kN |
| Fatigue load limit | Pu - 0.98 kN |
| Limiting speed | 2200 r/min |
| Weight | 1.35 kg |
| Hexagonal key size for grub screw | H - 4.762 mm |
| Recommended tightening torque for grub screw | 16.5 N·m |
